鋁門窗雙頭數顯精密切割鋸LJZY-500×4200是蘇州威旻達機械設備有限公司開發的第五代高精度切割鋸，主要用于斷橋鋁型材的切割。

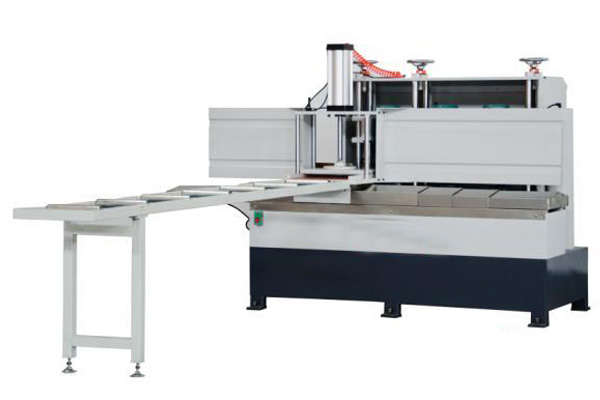

Double head cutting saw for aluminum door and window display LJZY-500 * 4200 is Suzhou Wei Min of development of machinery and Equipment Co. Ltd., the fifth generation high precision cutting machine, mainly used for cutting aluminum profiles.
整體機架采用高強度的矩管焊接時效而成。機頭部分采用了鑄鐵底盤，鋸片進給方式采用高精度的直線方導軌滑動機構。鋸片安裝在高精度的主軸箱上，通過了彈性三角帶與大功率2.2KW電機相連，進給速度可通過氣缸和阻尼缸雙重控制，進給速度穩定，可無級調速。
The whole frame is made of high strength moment pipe welding. The head part of the machine adopts the cast iron chassis, and the feed mode of the saw blade adopts the high precision linear square slideway sliding mechanism. The saw blade is installed on the spindle box with high accuracy, and the elastic triangle belt is connected to the high-power 2.2KW motor. The feed speed can be controlled by both the cylinder and the damping cylinder, and the feed speed is stable, and it can stepless speed regulation.

以上結構的運用，大大提高和保證了切割精度。鋸切角度可通過氣動改變，工人操作方便、實用。為保證長度切割精度，設備右機頭的運動方式采用了直線導軌滑動方式，并配有數顯裝置，精度可精確到小數點后兩位。

The use of the above structure greatly improves and ensures the cutting precision. The sawing angle can be changed by pneumatic, and the workers are convenient and practical. In order to ensure the length cutting accuracy, the movement of the right head of the device adopts the linear guide way and the digital display device, and the accuracy can be exactly two after the decimal point.
同時應客戶的要求，我們定制開發了斷橋鋁門窗設備----升級版高端精密鋸，在以下方面做了改進和升級：
At the same time, in response to the customer's requirements, we have customized the development of the broken bridge aluminum door and window equipment - the upgrades high-end precision saw, and improved and upgraded the following aspects:
整機采用整體式機架。機架通過全新優化設計，使設備在結構上更加合理，加強了整機機身的重量、剛性和穩定性，減小了設備工作時的共振，更能保證設備的加工精度。
The whole machine is used as a whole frame. The rack is optimized by the new design, which makes the equipment more reasonable in structure, and strengthens the weight, rigidity and stability of the whole fuselage, reduces the resonance of the device when it works, and ensures the machining accuracy of the equipment.
重新設計了鋸切防護罩的運動防護方式，由原前后擺臂式改為上下提拉式。此結構在安全防護上更加安全，避免了防護罩在運動時碰到操作人員。
The movement protection method of the sawing shield is redesigned, which is changed from the original front and back swing arm to the upper and lower drawing type. This structure is safer in safety protection, and prevents the shield from touching the operator when it moves.
設備采用經保險公司承保的國內知名品牌的浙江正泰低壓電器和臺灣亞德客品牌的氣動元件，保證了設備在操作控制上的安全性和穩定性。
The equipment uses the domestic well-known brand by insurance companies of Zhejiang CHINT low-voltage electrical appliances and Taiwan AIRTAC brand pneumatic components, ensure the equipment in operation control on the safety and stability of.
